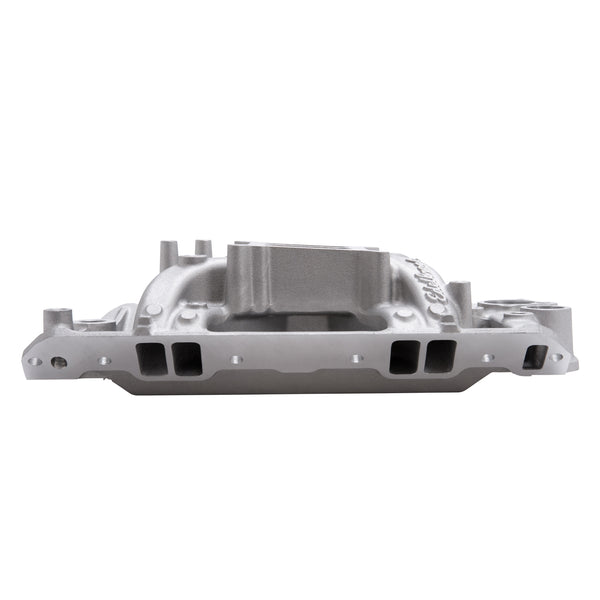

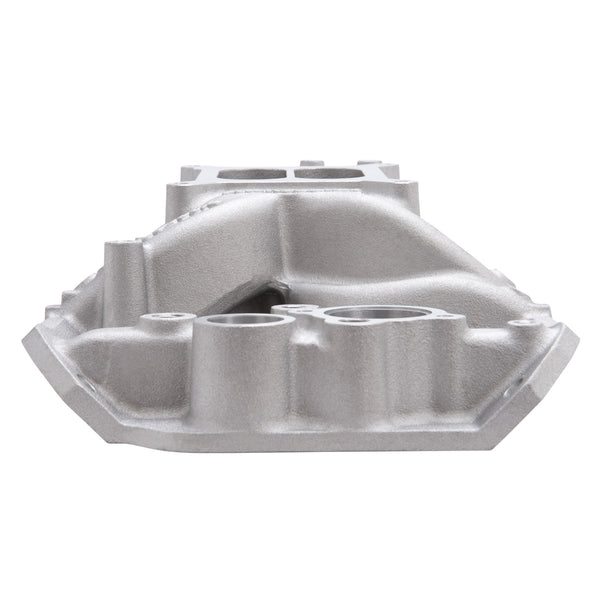

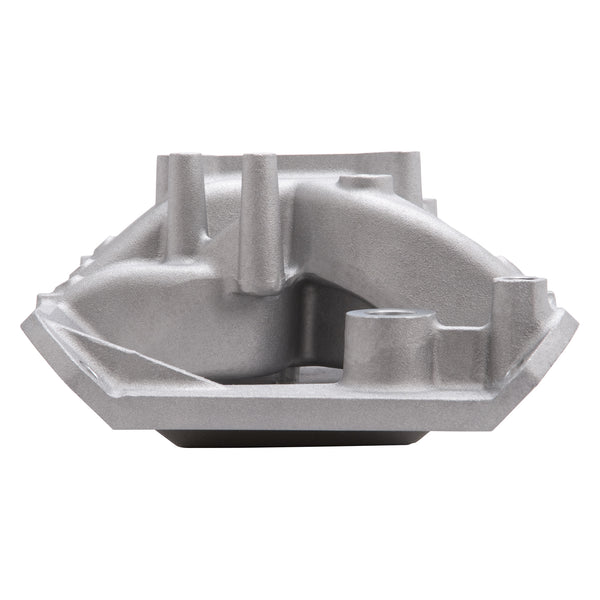

Edelbrock RPM Air-Gap Aluminum High-Rise Dual Plane Intake Manifold, Satin Finish, USA Made, 1967-69 AMC V8 (FREE lower 48 ground shipping in approx. 1-2 weeks)

This Edelbrock RPM Air-Gap AMC intake manifold is designed for 1967-69 290-390 c.i.d. V8 applications. This RPM Air-Gap intake manifold incorporates the same race-winning technology as our Victor Series competition intakes. The air-gap design features an open-air space that separates the runners from the hot engine oil for a cooler, denser charge, and more power.

• Cast aluminum construction is 30 lbs. lighter than factory cast iron
• High-rise dual-plane design improves torque from 1,500 to 6,500 rpm
• Fits all aftermarket square bore carburetors
• Fits ALL 1967-69 AMC V8 engines
• NOTE:  Will not accept stock Motorcraft spread bore carburetor. Includes standard oil fill and PCV provisions as well as early air conditioning support bracket accessory bosses. For square-bore carbs. No provision for exhaust-heated chokes. No exhaust crossover. Do not use competition-style intake gaskets for this street manifold. A factory metal valley tray gasket along with a composite/paper style gasket available separately.

• Intake Section Included: Complete Engine Block Deck Height: Standard deck Carburetor Quantity: One Intake Style: Dual plane Basic Operating RPM Range: 1,500-6,500 Intake Manifold Height: 5.110 in. Intake Color: Natural Intake Material: Aluminum EGR: No Quantity: Sold individually. Notes: Includes standard oil fill and PCV, as well as early air conditioning support bracket accessory bosses. No provision for exhaust-heated chokes. No exhaust crossover. Will only work on '68-'69 cylinder heads. Installation Notes: Recommended intake gasket: Fel-Pro MS96011; Must use factory style metal valley tray; Manifold height: A-4.45", B-5.77"; Carb pad height: 5.11"; Carb recommendations: 600-800 cfm.; Port exit dimensions: 1.04" x 2.10"; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.

If you want a noticeable bump in power for your 1967-1969 AMC V8, this is the intake manifold to get.

• Edelbrock aluminum intake manifold and installation instructions

• If you are unsatisfied with your purchase, here's what we can do: If your product is defective, damaged in transit, or the wrong merchandise, we are happy to exchange it for the same product within 30 days. If your product is custom manufactured to order, it is not returnable.

• Manufacturer Warranty:  1-year limited
