Rear 4-Link Coil Over Suspension System, 1964-68 Rambler, 1969 AMC American - FREE lower 48 ground shipping in approx. 2-3 weeks

Control Freak Suspensions' 4-Link Coil-Over Rear Suspension Systems for AMC muscle cars are designed to provide exceptional traction, stability, handling, control, safety and performance, making your AMC muscle car a contender. This weld-in system is designed in-house on the most advanced SolidWorks CAD systems. These 4-link systems are eager performers that release unsprung weight while increasing the torsional rigidity of the rear end. Wheel hop is eliminated and rear body roll is controlled. Lighter, stronger and more precise than the stock suspension, these systems are as much at home on the street as they are on the strip, autocross or road race courses.

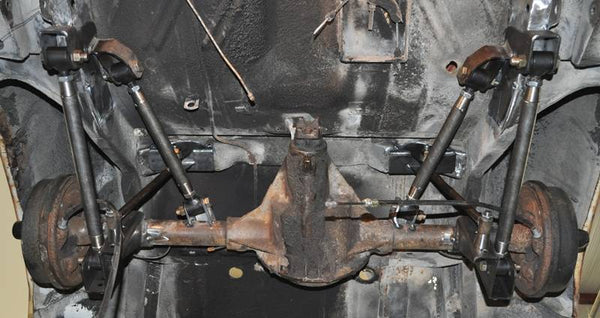

On triangulated systems, one set of trailing arms, either the upper or lower, are angled inward creating a triangle.  No panhard bar is required for these systems because the triangle prevents the system from moving side-to-side. Your 4-link coil-over system comes complete, but all brackets must be welded into position and exhaust modifications are required over the axle.

• Improves traction, stability, handling, control, safety, & performance
• Eliminates wheel hop & controls rear body roll
• Saves valuable weight and much stronger than stock rear suspension systems
• Provides maximum wheel clearance so you can use a mini-tub for wider rear wheels & tires
• Increases exhaust system clearance

• Custom Manufactured To Order:  Please allow 2-3 weeks for manufacturing plus shipping.
• Country of Origin: USA
• Welding Required: Yes
• Exhaust Modifications Required:  Yes
• Sold:  Kit

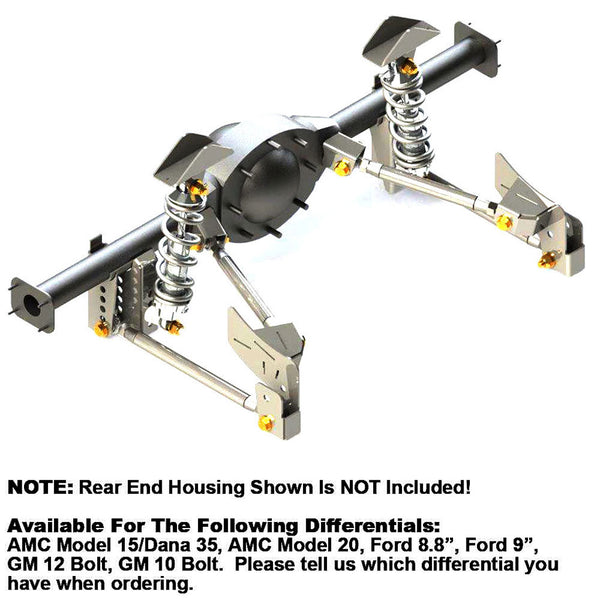

• NOTE: Rear End Housing Shown Is NOT Included! Available For Following Differentials: AMC Model 15, AMC Model 20, Ford 8.8”, Ford 9”, GM 12 Bolt, GM 10 Bolt.  Please tell us which differential you have when ordering.

This popular kit provides a one-and-done solution for improving handling, improving traction, controlling wheel hop, providing adjustable ride height, and overall driving enjoyment.

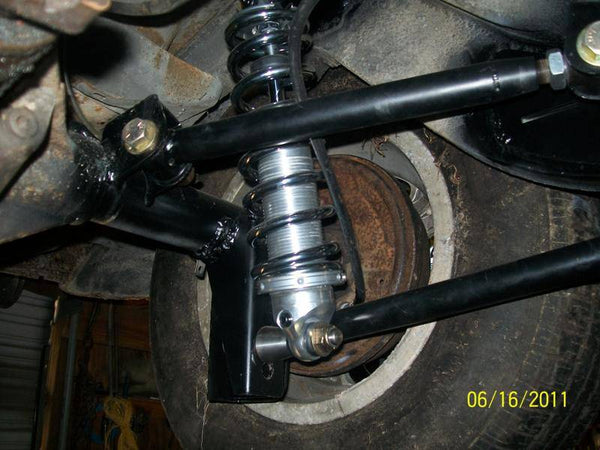

• Custom laser cut & CNC formed brackets, fully adjustable & powder coated DOM seamless round tube trailing arms, TIG welded-CNC machined threaded inserts for ease of adjustment & strength, double adjustable USA made Viking coil-over shocks, Viking high tensile steel springs, Chromoly adjustable rod-ends, forged adjustable bushing housings with performance polygraphite bushings, Grade 8 mounting hardware, powder-coated components with foam in place packaging, & step-by-step instructions

• If you are unsatisfied with your purchase, here's what we can do: If your product is defective, damaged in transit, or the wrong merchandise, we are happy to exchange it for the same product within 30 days. If your product is custom manufactured to order, it is not returnable.

• Manufacturer Warranty:  1-year limited
